NOVA AIR E Series
Advanced Cooling Technology
Experience ultimate comfort with our state-of-the-art air conditioning system. Features smart controls, energy efficiency, and whisper-quiet operation.
Download Catalog
Key Features
Display on Front Panel
Displays the current temperature on the unit's front panel.
LCD Wireless Remote Controller
Wireless remote control with built-in LCD screen.

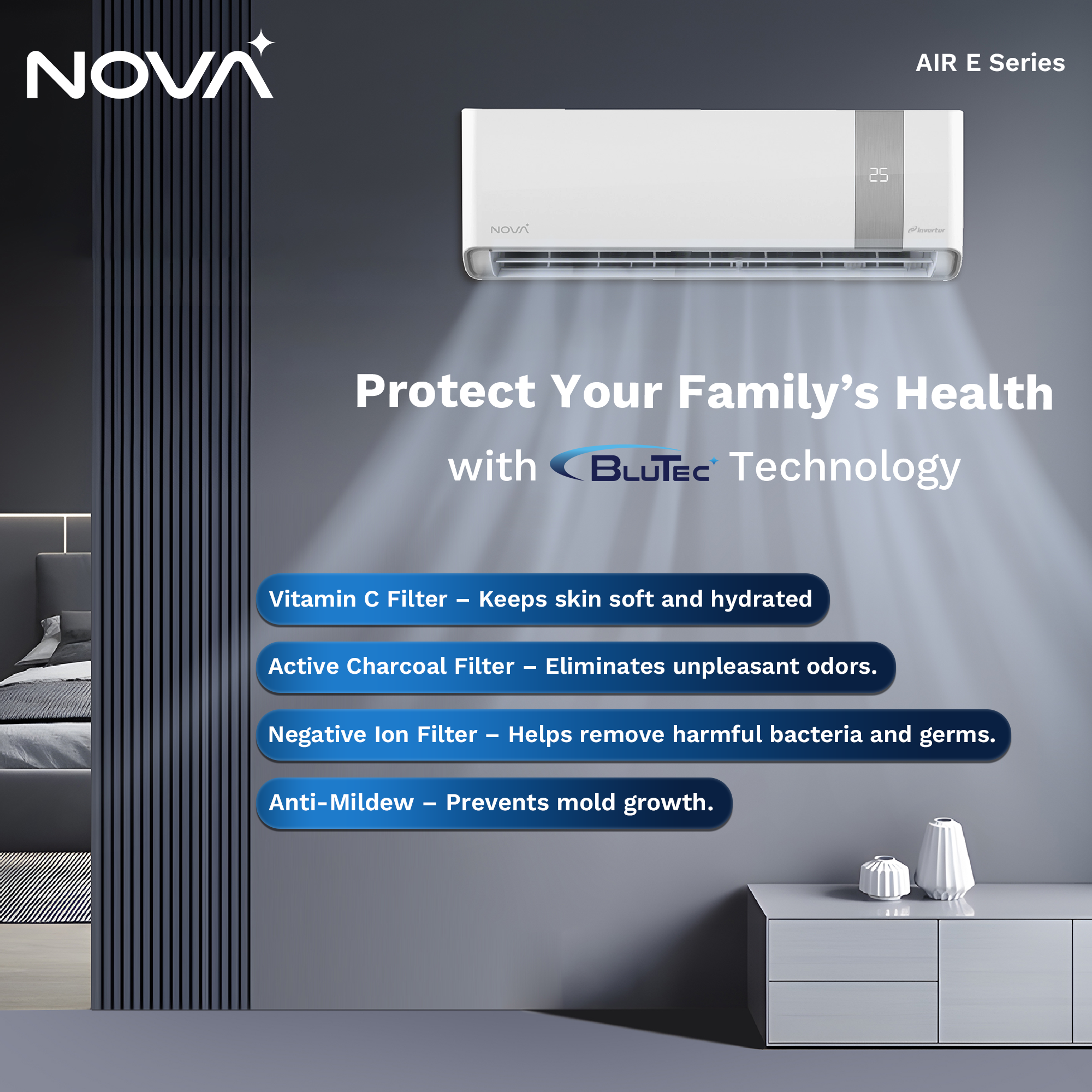

Active Charcoal Filter
Removes unpleasant odors from the air.
Negative Ion Filter
Neutralizes airborne pollutants and improves air quality.
Vitamin C Filter
Adds moisture to the air to help keep skin hydrated.
Anti-Mildew
Prevents mold and mildew growth inside the unit.

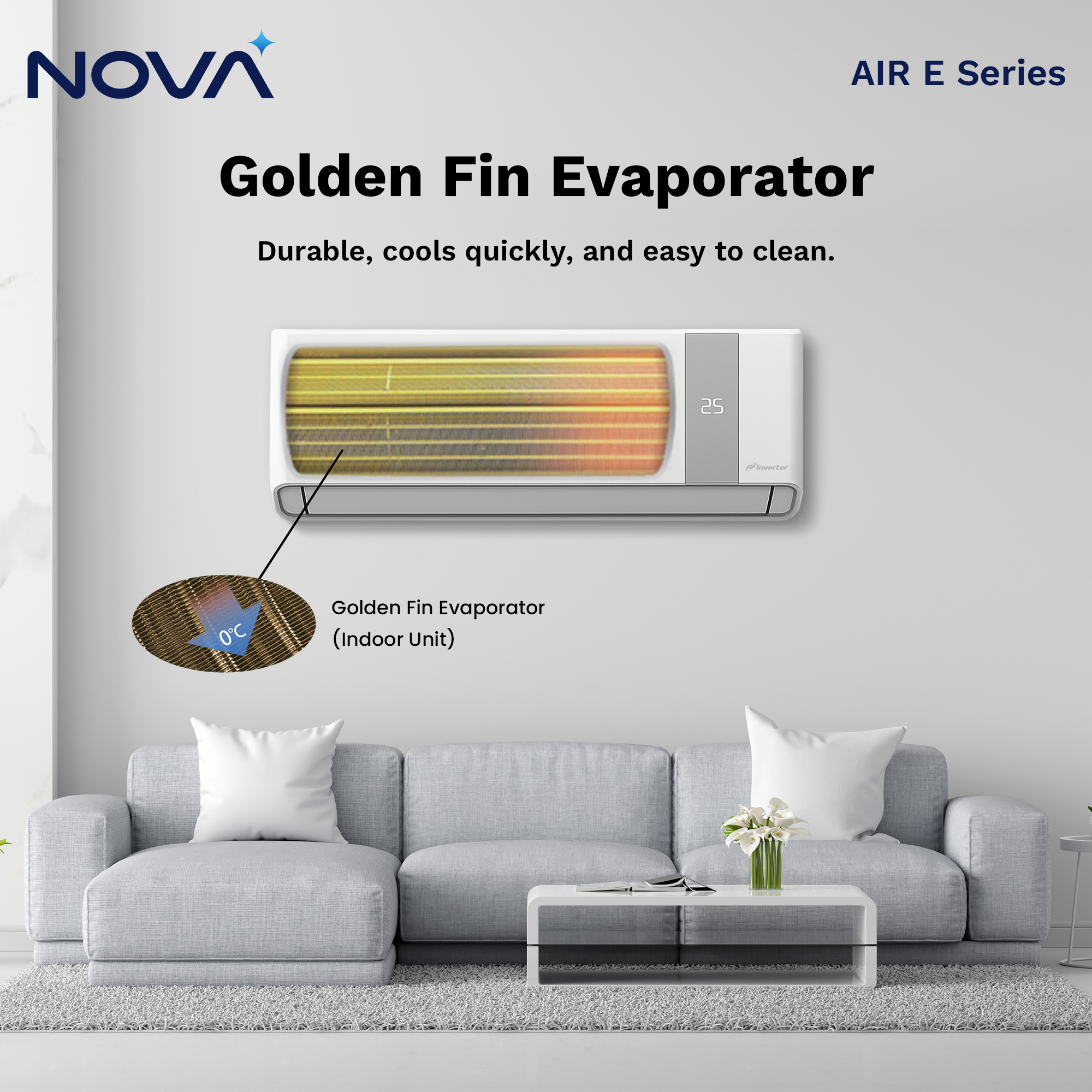

Golden Fin Evaporator (Indoor Unit)
Gold-coated indoor coil for faster cooling, better corrosion resistance, and long-lasting performance.
Golden Fin Condenser (Outdoor Unit)
Gold-coated outdoor coil that resists rust, adapts to temperature changes, and extends the unit's lifespan.
Manual Adjustable Vertical Louver
Vertically adjustable air deflector for precise airflow direction.
Turbo / Strong Function
Provides rapid cooling at maximum power.
4-Way Swing
Directs airflow in four directions: left, right, up, and down.
Sleep Function
Operates quietly with gentle cooling for a comfortable night's sleep.
Inverter Technology
Maintains a stable temperature while operating quietly and saving energy.
Auto Clean
Automatically cleans and dries the internal components to prevent odor and bacteria buildup.
Model
Indoor Unit Specifications
| Cooling Capacity | 9,000 BTU |
|---|---|
| Rated Capacity | 2600 W (600–3100) |
| Rated Input Power | 752 W |
| Rated Input Current | 3.4 A |
| Max. Input Power | 1190 W |
| Max. Input Current | 5.5 A |
| Power Supply Source | 220–240V / 1Ph / 50Hz |
| Refrigerant | R32 |
| Refrigerant Charged | 350 g |
| Max. Discharge Pressure | 4.3 MPa |
| Max. Suction Pressure | 2.5 MPa |
| Air Flow Volume | 600 m³/h |
| IDU Noise Level [+/- 3dB] | 35 dB(A) |
| ODU Noise Level [+/- 3dB] | 48 dB(A) |
| Evaporator | |
| Multi-bend | 3 |
| Rows | 2 |
| Tube Pitch × Row Pitch | 21 × 13.37 × 2 mm |
| Tube Material | Inner-grooved copper |
| Tube Length | 498 mm |
| Tube Diameter × Thickness | Φ7 mm |
| No. of Hair Pin | 6U |
| Fin Material | Hydrophilic aluminium foil |
| Fin Type | Window type |
| Fin Thickness | 0.095 mm |
| Fin Spacing | 1.5 mm |
| Face Area (L × W) | 0.130 m² |
| Fan System | |
| Fan Type | Cross-flow fan |
| Indoor Fan Blade Material | AS + Glass Fiber |
| Fan Diameter × Length | Φ92 × 494 mm |
| Fan Motor Model | ZWR20-8J-1 |
| Fan Motor Type | DC |
| Fan Motor Capacitor | NA |
| Fan Motor Insulation Grade | E |
| Rated Output Power | 8 W |
| Dimension & Weight | |
| Indoor Unit Weight (Net) | 7 kg |
| Indoor Unit Weight (Gross) | 9 kg |
| Packing Type (6 face/4 face) | 6 |
| Net Dimension (W × D × H) | 716 × 250 × 190 mm |
| Packing Dimension (W × D × H) | 770 × 335 × 280 mm |
Outdoor Unit Specifications
| Connect Pipe | |
| Liquid tube Diameter × Thickness | Φ6.35 × 0.55 mm |
|---|---|
| Gas tube Diameter × Thickness | Φ9.52 × 0.60 mm |
| Stop Valve | |
| Liquid Valve | 1/4" |
| Gas Valve | 3/8" |
| Compressor | |
| Model | KSK82D22UDZA31 |
| Drive Mode | DC (AC/DC) |
| Type | ROTARY |
| Brand | GMCC |
| Wind System (Fan) | |
| Output Power | 33 W |
| Model / Brand | WELLING, or Equal |
| Type | DC (AC/DC) |
| Insulation Grade | E |
| Capacitor | NA μF |
| Heat Exchanger (Tube & Fin) | |
| Tube Material | Inner-grooved copper |
| Tube Length | 620 mm |
| Tube Diameter × Thickness | Φ7 mm |
| Tube Quantity | 8U |
| Fin Spacing | 1.4 |
| Weight | |
| Outdoor Unit Weight (Net) | 22 kg |
| Outdoor Unit Weight (Gross) | 24 kg |
| Dimensions | |
| Net Dimension (W × D × H) | 680 × 246 × 462 mm |
| Packing Dimension (W × D × H) | 775 × 315 × 515 mm |
